Description
A portable compressor refrigerator designed for outdoor enthusiasts, ready to enjoy cool drinks on the go. It boasts a 25L capacity, fast cooling, and low noise operation, with an energy-saving mode option. The large display screen allows for easy temperature adjustments using function keys. In addition, it provides an ultraviolet sterilization function to ensure the cleanliness of food. When in refrigeration mode, it can keep warm for a long time after a power failure.
Features
- Built-in sensor light plus UV sterillization light enhance functionality
- Power protection against overcurrent, overloading, overvoltage and overheating
- Built-in handle makes it easy to carry and transport wherever you go
Specifications

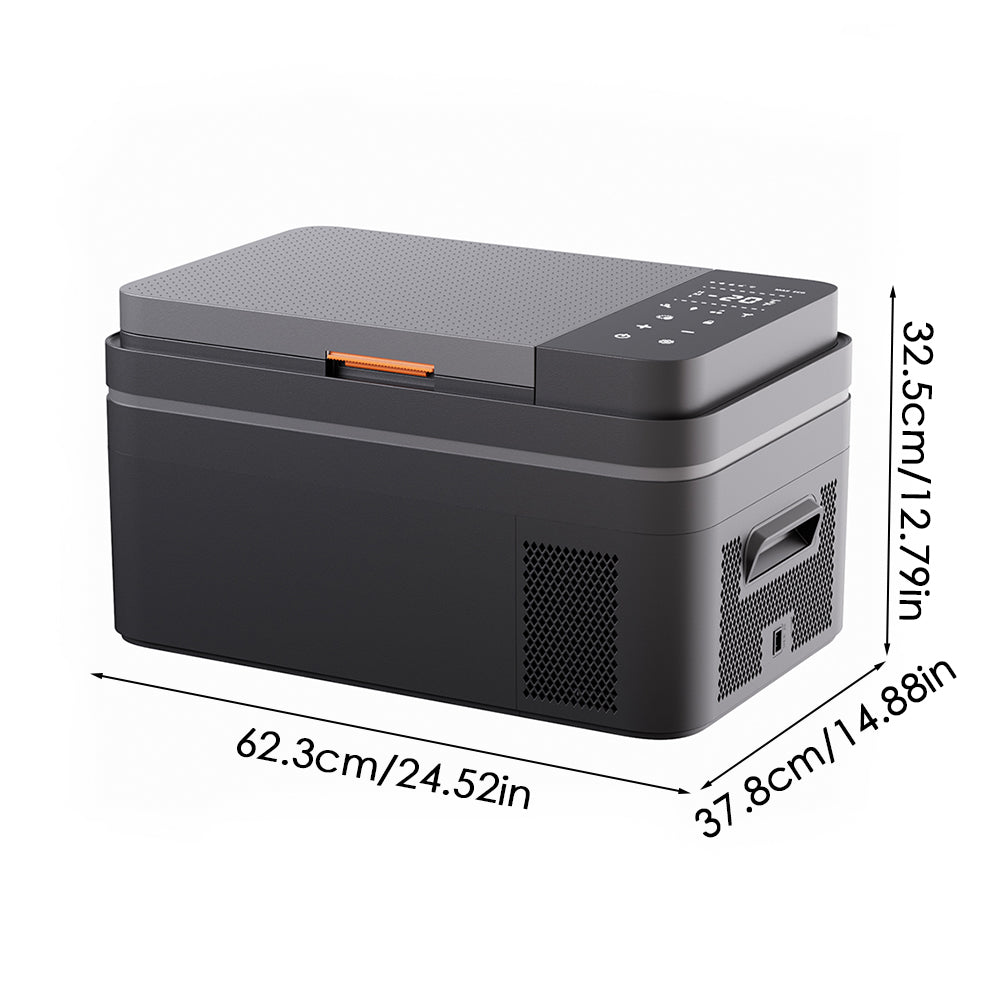

Overall Dimensions: 62.3cm W x 37.8cm D x 32.5cm H
Colour: Grey+Black
Capacity: 25L
Material: ABS+PP
Range: -20℃~+20℃(32℃)
Power: 45W（±20%）
Voltage: DC 12V/24V
Noise: ≤45dB
Cooling: Compressor
Package Included
1 x Portable Refrigerator
Package Specifications
Package Dimensions (WxDxH): 620 x 390 x 400cm
Gross Weight: 13kg
Safety Cautions
- Do not touch power cords, power sockets, or power strips with wet hands.
- Have a professional install the refrigerator if using it in cars, RVs, or yachts.
- Ensure the power supply lines and fuses are suitable and that the power is connected correctly.
- Do not expose the refrigerator to rain or strong sunlight for extended periods.
- Place the refrigerator in a well-ventilated area to ensure proper heat dissipation. Maintain at least a 100 mm gap between the cooling vents and other objects.
- Use the refrigerator on a flat surface to maintain its efficiency and prolong its service life.

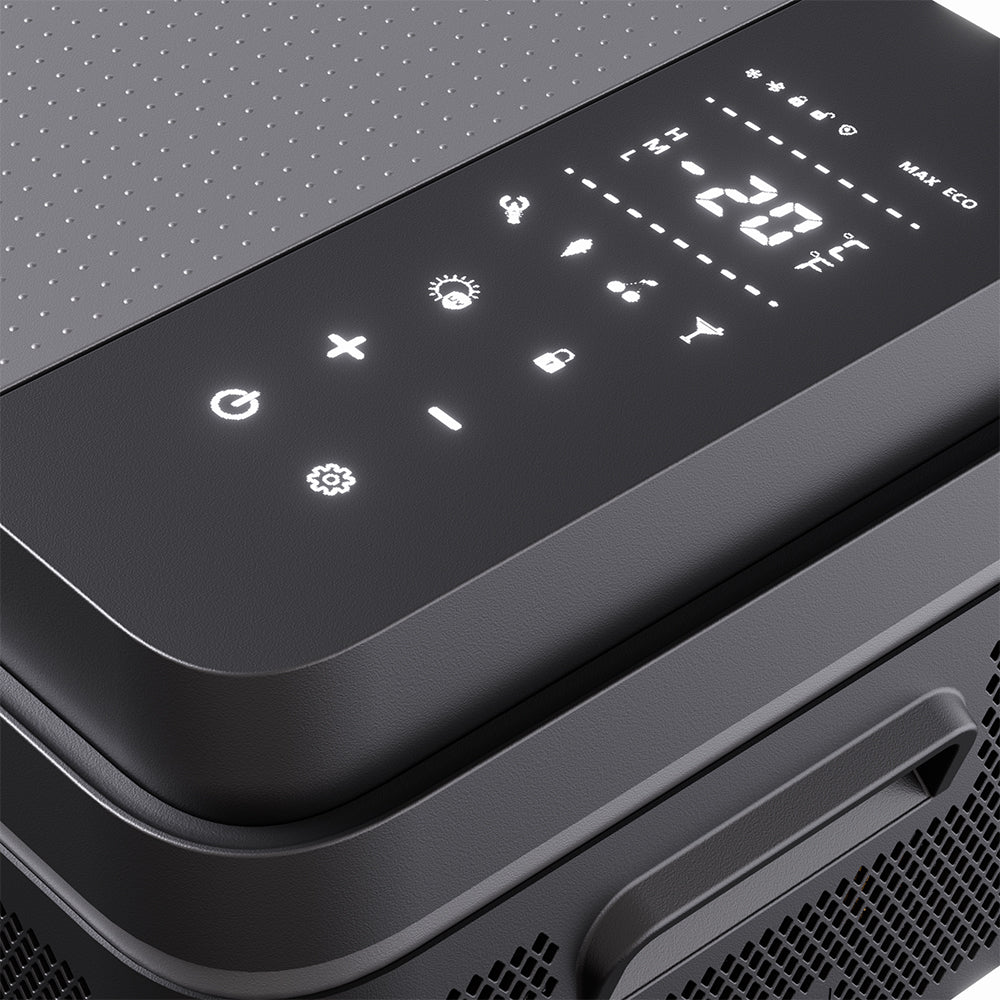

Operation Guide
Lock: The keyboard locks automatically after 20 seconds of inactivity. The child lock icon will light up.
Unlock: Hold the lock button for 3 seconds to unlock. The unlock icon will light up.
Adjust Temperature: When unlocked, press +/- button to increase or decrease the temperature by 1 degree. Hold the button for quick adjustment. The set value saves automatically after 5 seconds.
Fast Cooling: Press the M button to switch quickly between -18℃, -10℃, 0℃, 5℃, and 10℃.
UV Lamp: When unlocked, press the UV button to start the UV lamp. The UV light turns off when the door opens to protect your eyes.
Switch Modes: Press the set button to toggle between "ECO" and "MAX". Use "MAX" for quick cooling and "ECO" for energy-saving constant temperature.
Fahrenheit/Celsius: When unlocked, hold the set button for 2 seconds to activate the mode. Press +/- button to switch between Fahrenheit and Celsius.
Low Voltage Protection: Automatically stops the compressor if battery voltage is too low, indicated by the "E1" code. Resumes normal operation when voltage stabilizes.
Note: For more detailed instructions and Bluetooth function please refer to the user manual.
