Description

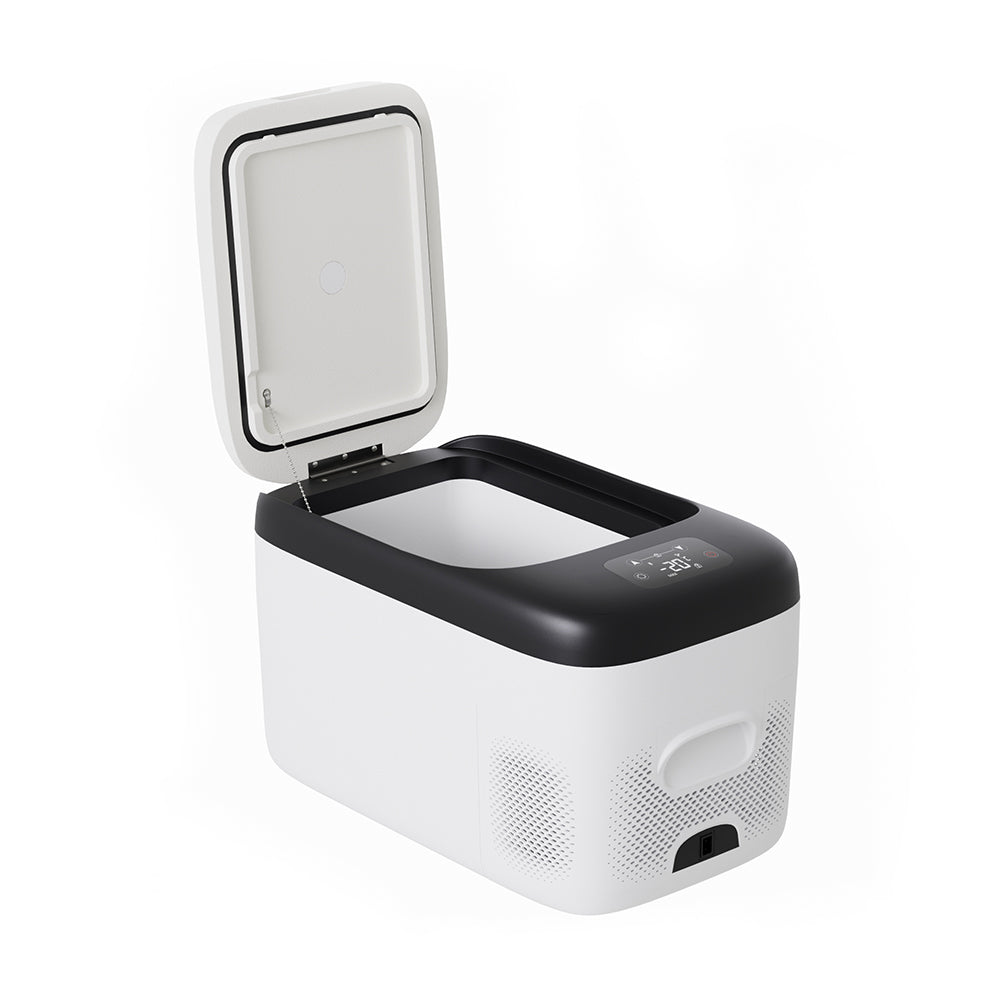

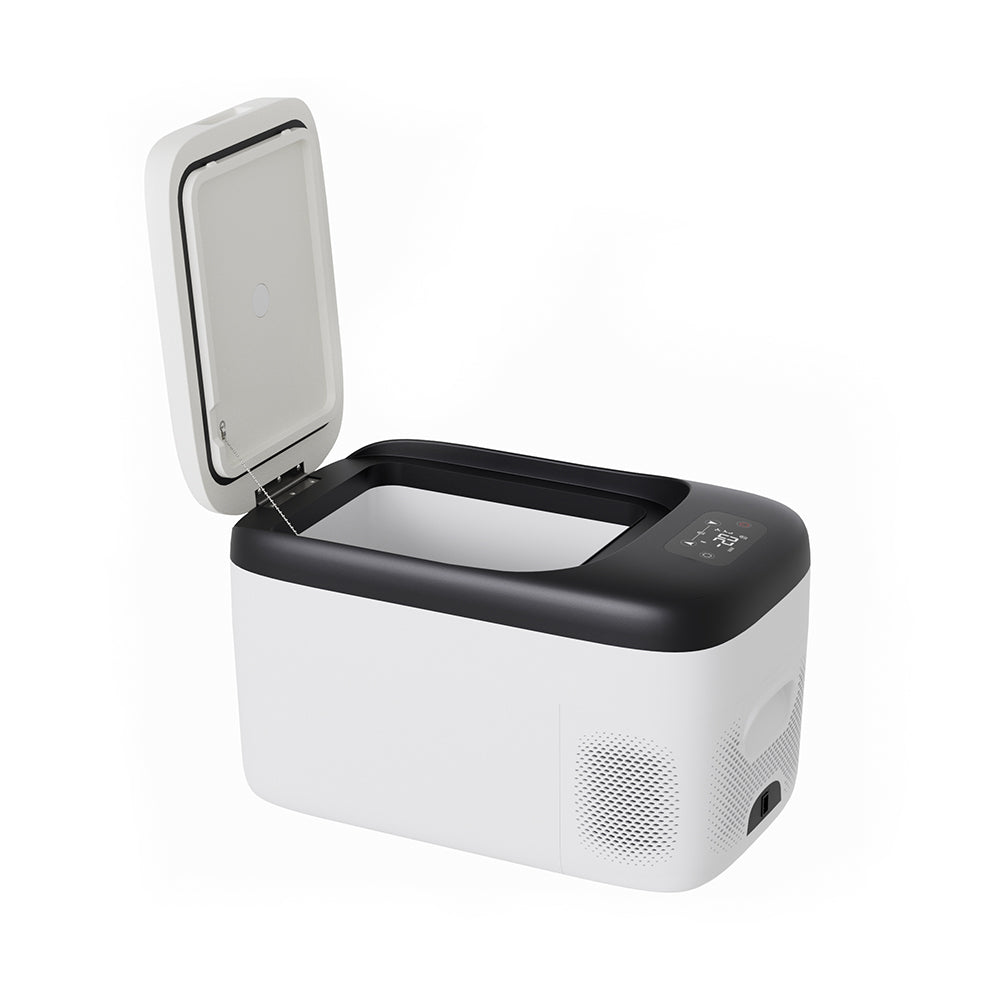

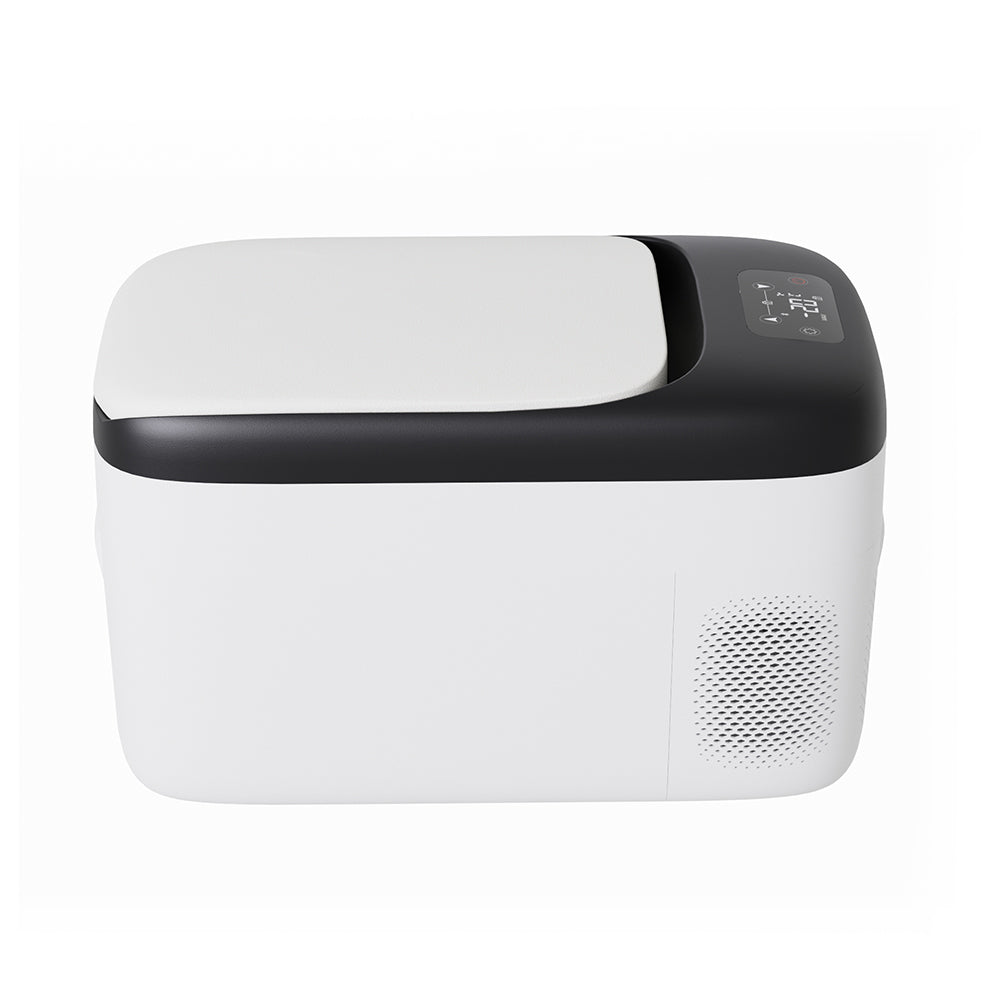

Enjoy the great weather with a perfect picnic or camping trip, and keep your drinks and food fresh with this compact portable compressor refrigerator. With a 23L capacity, it is ideal for storing sandwiches, fruits, drinks, and more, ensuring they taste better after being refrigerated. The refrigerator features a convenient display screen for temperature adjustments via Bluetooth or manual controls. Plus, it charges quickly and is energy-efficient, making it a must-have for your outdoor adventures.
Features
- Equipped with a handle for easy portability
- Compact design does not take up much space
- Fast cooling chills your food and drinks to the desired temperature
Specifications

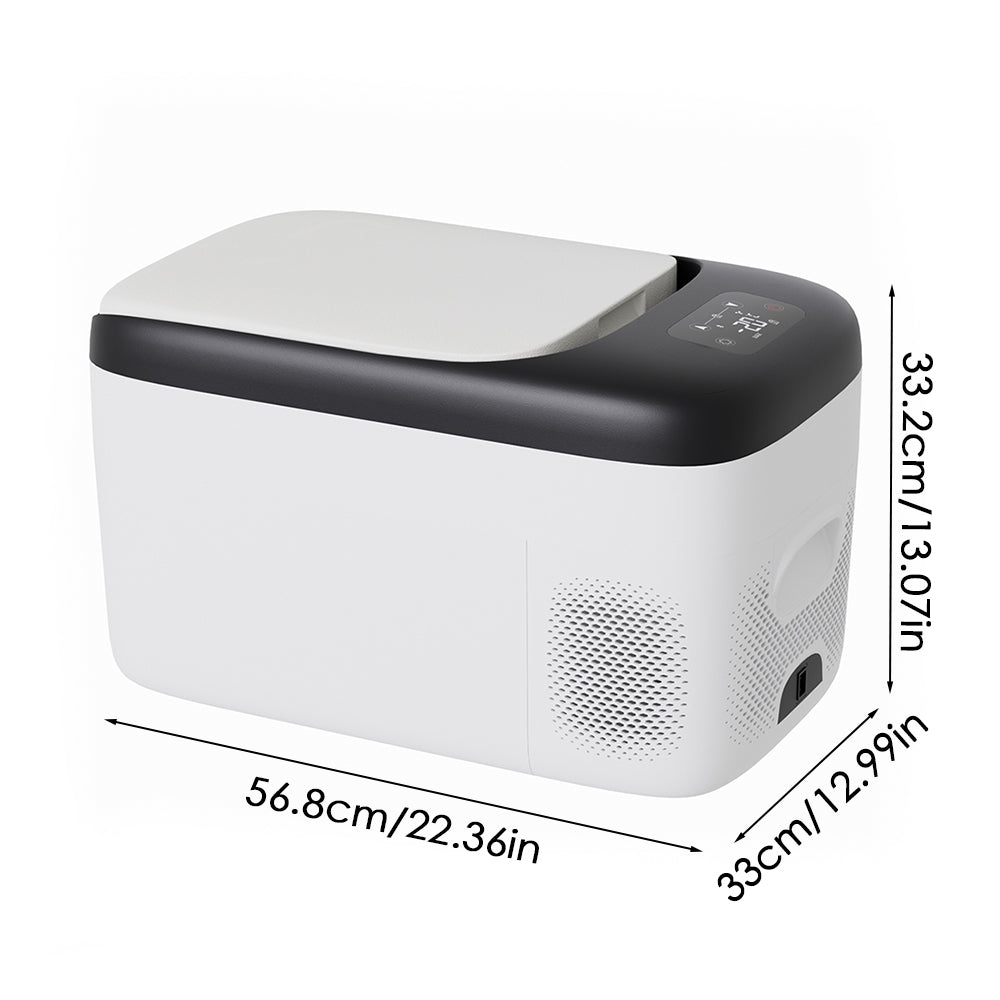

Overall Dimensions: 56.8cm W x 33cm D x 33.2cm H
Colour: White+Black
Capacity: 23L
Material: ABS+PP
Range: -20℃~+20℃(32℃)
Power: 45W(±20%)
Voltage: DC 12V/24V
Noise: ≤45dB
Cooling: Compressor
Package Included
1 x Portable Refrigerator
Package Specifications
Package Dimensions (WxDxH): 620 x 390 x 400cm
Gross Weight: 10.5kg
Safety Cautions
- Do not touch power cords, power sockets, or power strips with wet hands.
- Have a professional install the refrigerator if using it in cars, RVs, or yachts.
- Ensure the power supply lines and fuses are suitable and that the power is connected correctly.
- Do not expose the refrigerator to rain or strong sunlight for extended periods.

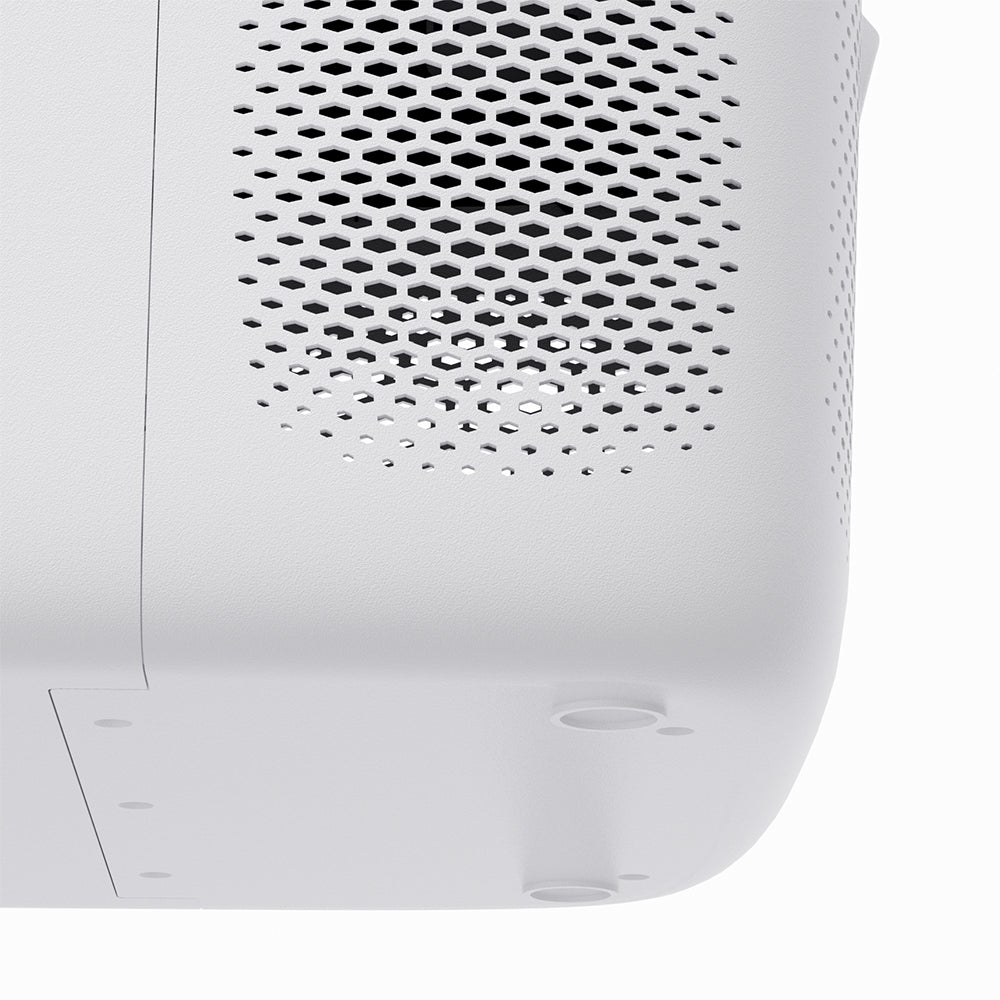

- Place the refrigerator in a well-ventilated area to ensure proper heat dissipation. Maintain at least a 100 mm gap between the cooling vents and other objects.
- Use the refrigerator on a flat surface to maintain its efficiency and prolong its service life.
Operation Guide

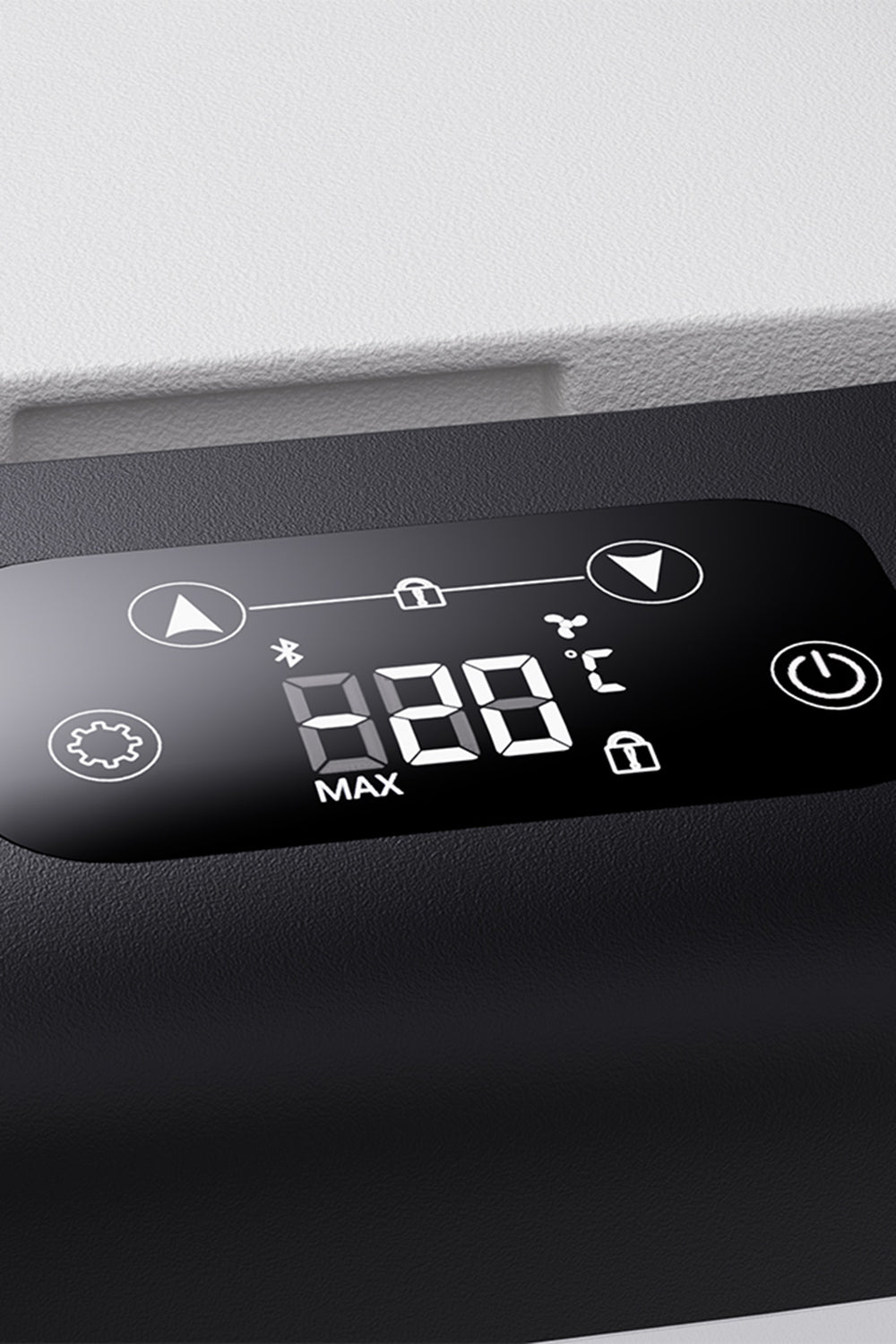

Start-Up: Connect to DC 12V/24V power. Hold the power button for 3 seconds to start. The display shows the current temperature and mode.
Shut-Down: Hold the power button for 3 seconds to stop while the keyboard is unlocked.
Lock: Hold the up button for 6 seconds. The child lock icon will light up. The keyboard locks automatically after 20 seconds of inactivity.
Unlock: Hold the down button for 6 seconds.
Adjust Temperature: Press the up/down button to change the set temperature (increments of 1℃). Hold the button for quick adjustment. The set value saves automatically after 5 seconds of inactivity.
Switch Modes: Press the set button to toggle between "ECO" and "MAX". Use "MAX" for quick cooling and "ECO" for energy-saving constant temperature.
Low Voltage Protection: Automatically stops the compressor if battery voltage is too low, indicated by the "E1" code. Resumes normal operation when voltage stabilizes.
Note: For more detailed instructions and Bluetooth function please refer to the user manual.
