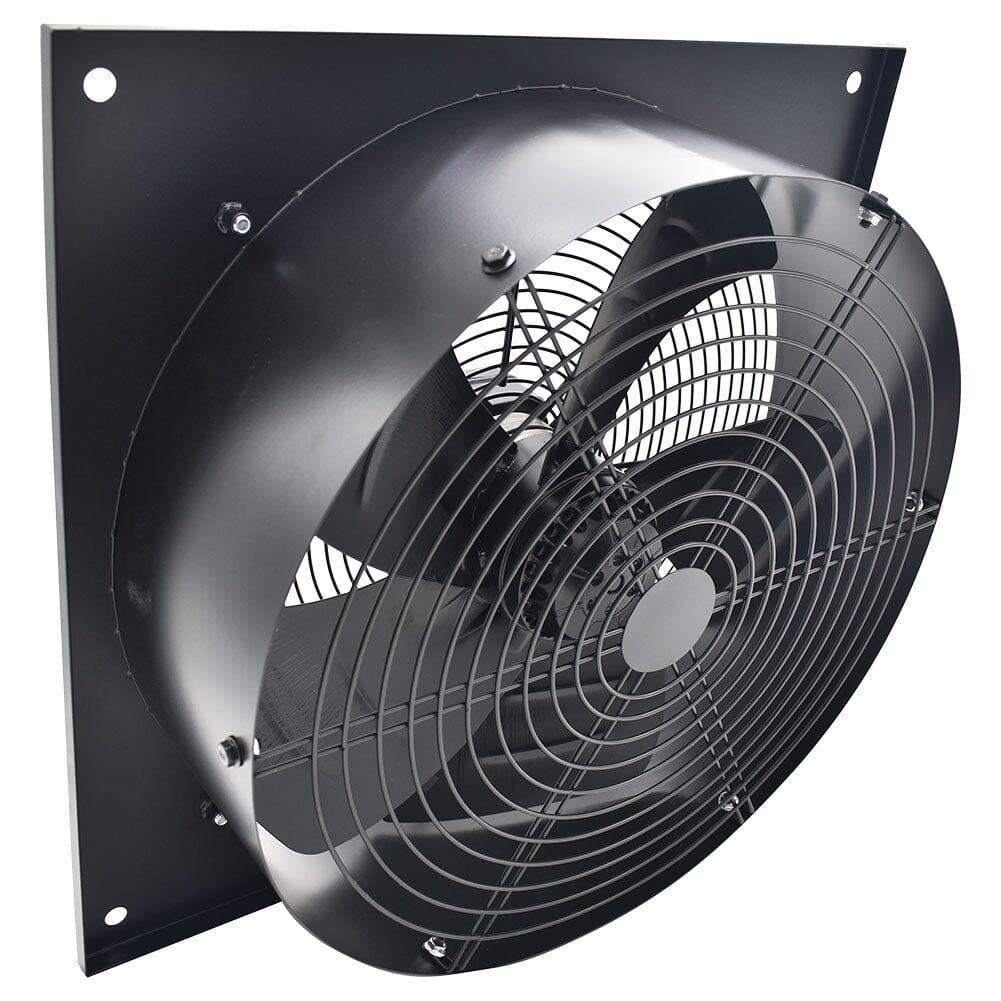

200mm Exhaustor Fan Ventilation Wall-Mounted Axial Fan

Black Ventilation Axial Fan Wall-Mounted Exhaust Fan 8-24 INCH

Description:

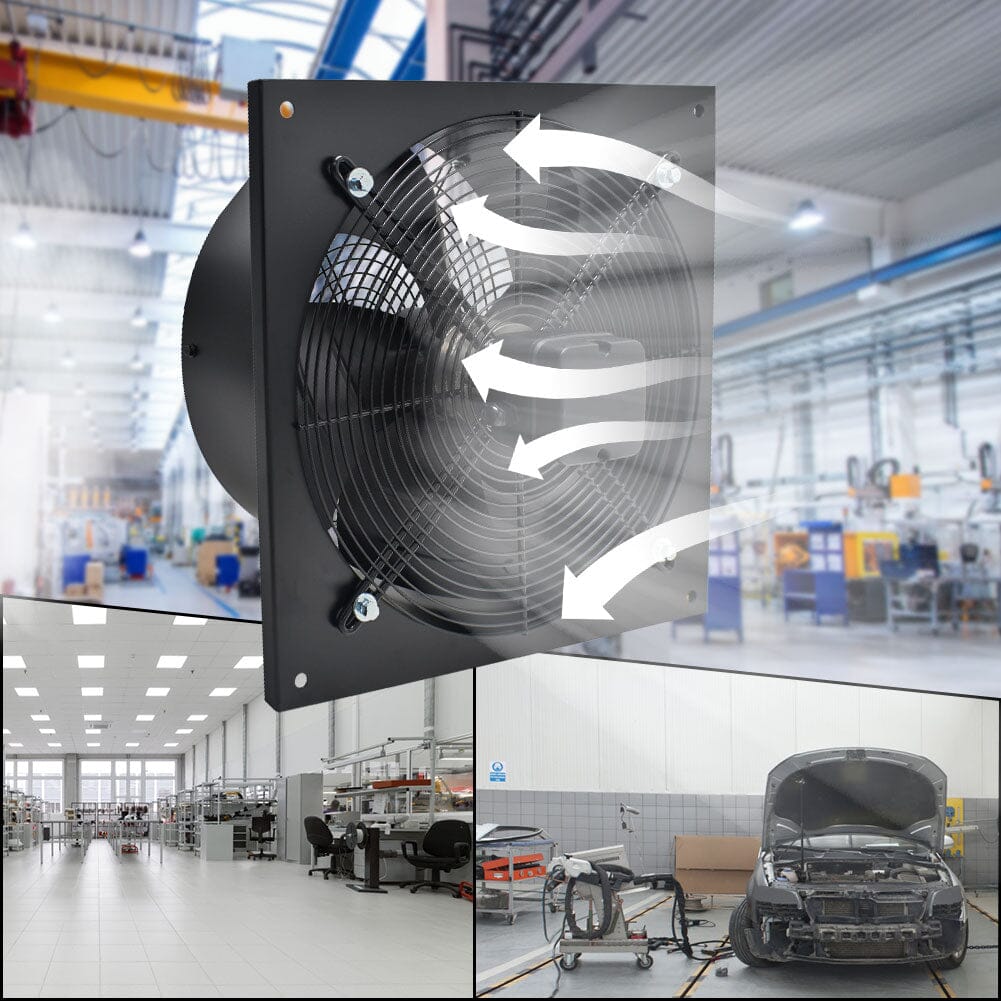

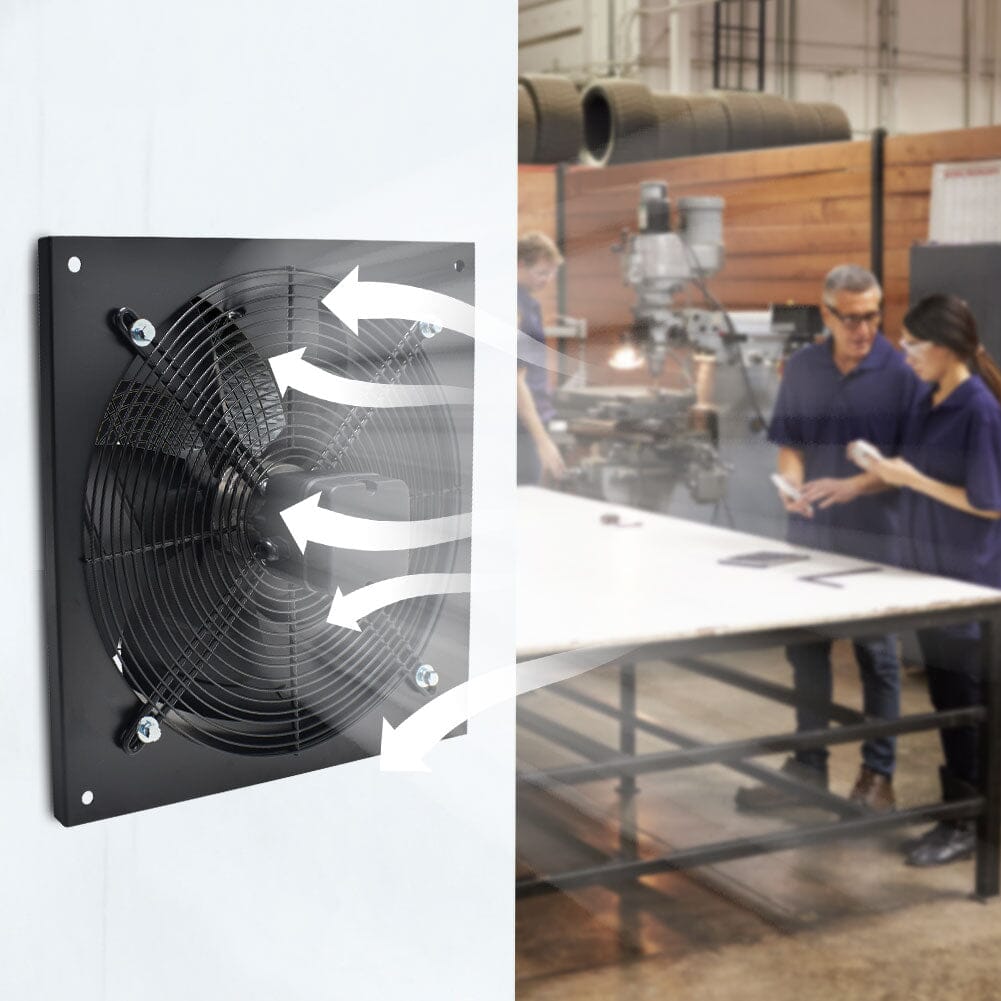

Constructed from durable all-metal materials and sporting an industrial-style matte black finish, the Livingandhome wall-mounted exhaust fan provides an immediate air refreshment solution. In enclosed spaces, this efficient exhaust fan excels at expelling stale air, eliminating odors, and reducing excess moisture, thereby inhibiting bacterial growth in nooks and crannies and mitigating the risk of respiratory infections. The fan minimizes noise while not compromising its working efficiency. Versatile in application, this fan is suitable for use in bathrooms, kitchens, workshops, and more.

Features:

• Built-in copper motor ensures efficient and long-lasting operation

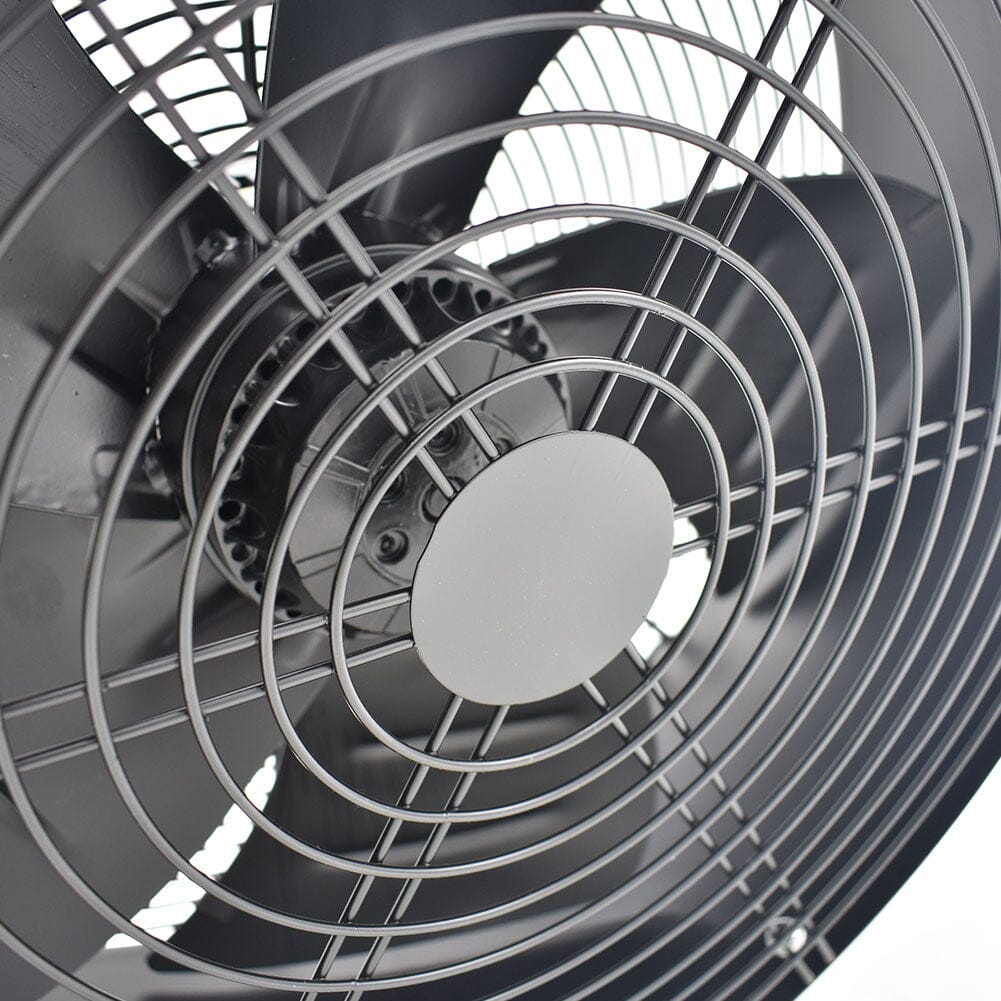

• Mesh enclosure minimizes the potential for unwanted objects to be drawn into the system
• Wall-mounted design saves space and provides optimal ventilation

Specifications:

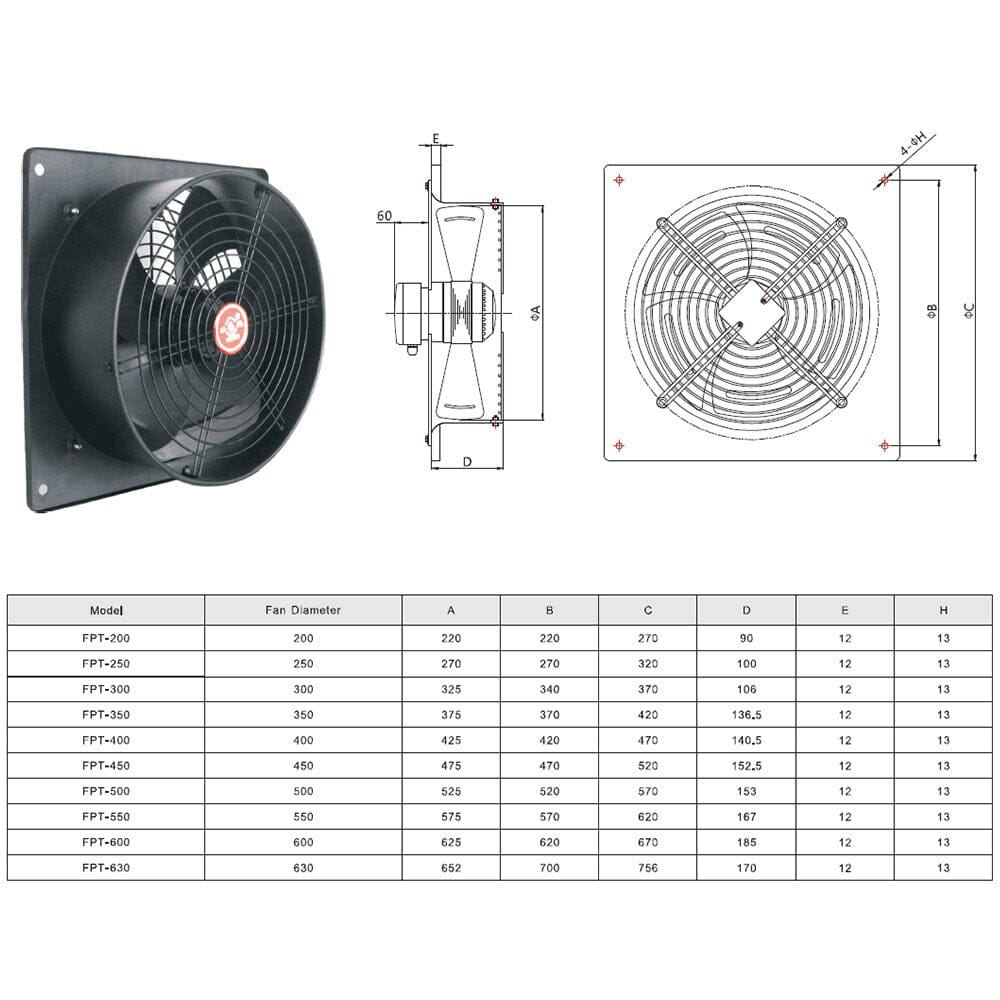

Overall Dimensions:

• 27cm W x 9cm D x 27cm H (8-inch, 200MM axial flow)

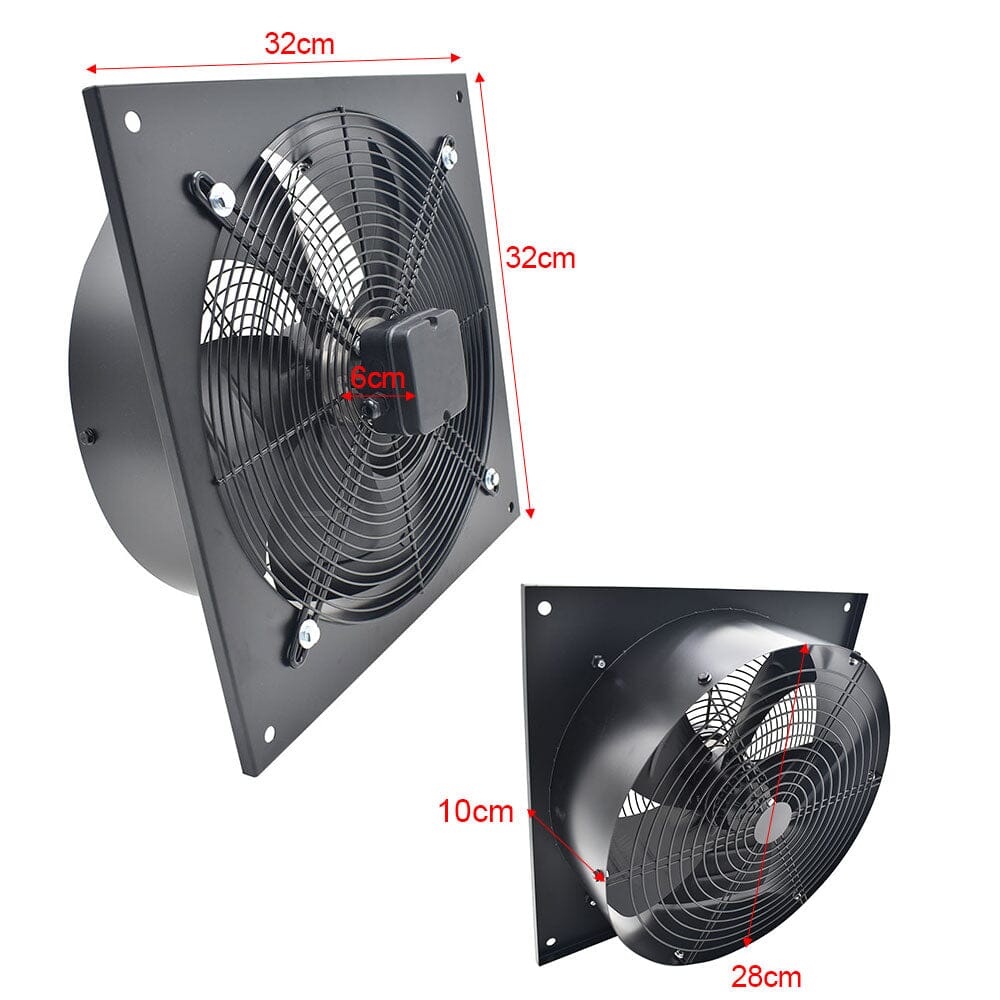

• 32cm W x 10cm D x 32cm H (10-inch, 250MM axial flow)
• 37cm W x 10.6cm D x 37cm H (12-inch, 300MM axial flow)
• 42cm W x 13.6cm D x 42cm H (14-inch, 350MM axial flow)
• 47cm W x 14cm D x 47cm H (16-inch, 400MM axial flow)

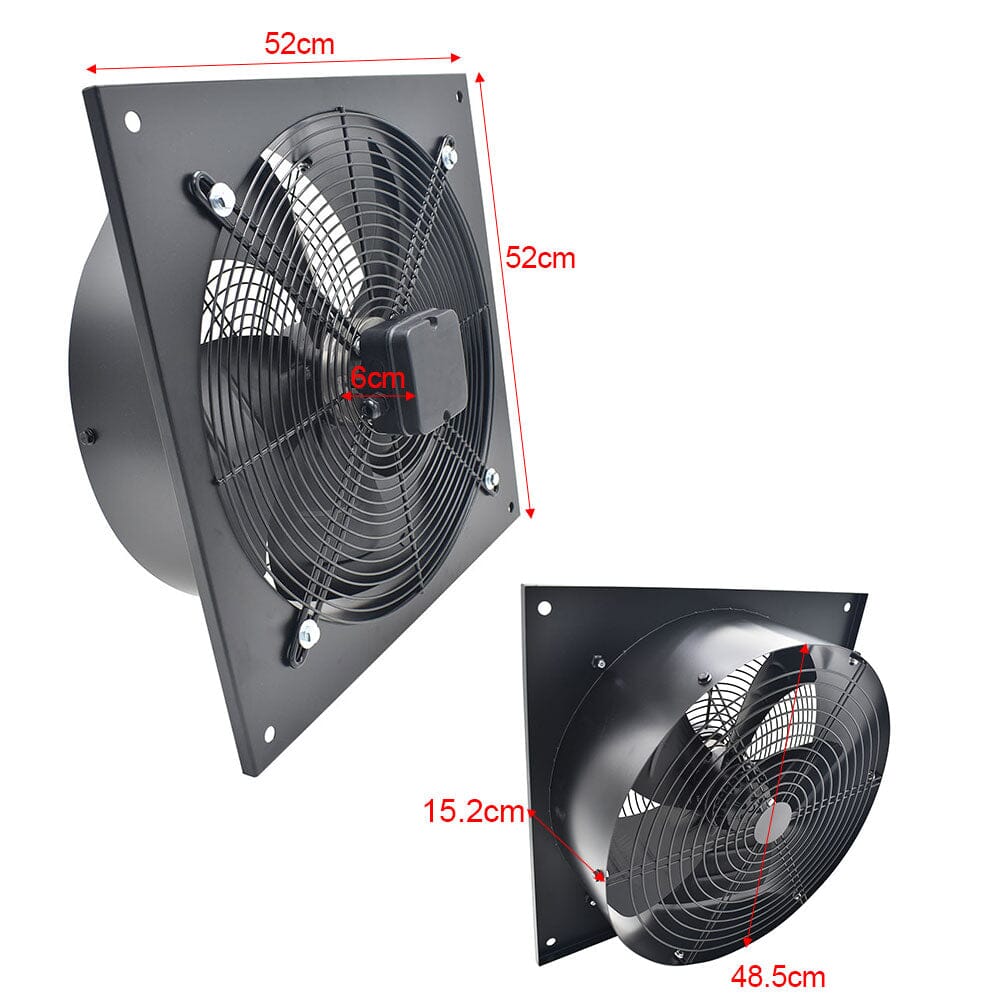

• 52cm W x 15.2cm D x 52cm H (18-inch, 450MM axial flow)
• 57cm W x 15.3cm D x 57cm H (20-inch, 500MM axial flow)
• 62cm W x 16.7cm D x 62cm H (22-inch, 550MM axial flow)
• 67cm W x 18.5cm D x 67cm H (24-inch, 600MM axial flow)

Motor Type: Copper Motor

Phase: 1

Voltage: 220-240V, 50HZ

Input Current:

• 0.23A (8-inch)
• 0.5A (10-inch)
• 0.8A (12-inch)
• 0.73A (14-inch)
• 0.85A (16-inch)
• 1.2A (18-inch)
• 1.6A (20-inch)
• 2.4A (22-inch)
• 3.3A (24-inch)

Capacitance:

• 2uF(8 inch, 10 inch)
• 4uF(14 inch)
• 6uF(12 inch, 16 inch)
• 8uF(18 inch)
• 10uF(20 inch)
• 12uF(22 inch)
• 16uF(24 inch)

Power Consumption:

• 60W (8-inch)
• 110W (10-inch)
• 165W (12-inch)
• 145W (14-inch)
• 180W (16-inch)
• 250W (18-inch)
• 350W (20-inch)
• 500W (22-inch)
• 710W (24-inch)

Number of Blades: 5

Speed:

• 2550 (r/min) (8-inch)
• 2550 (r/min) (10-inch)
• 2300 (r/min) (12-inch)
• 1380 (r/min) (14-inch)
• 1350 (r/min) (16/18/20/22/24-inch)

Air Volume:

• 780M3/H (8-inch)
• 960M3/H (10-inch)
• 2130M3/H (12-inch)
• 2500M3/H (14-inch)
• 3500M3/H (16-inch)
• 4850M3/H (18-inch)
• 6570M3/H (20-inch)
• 8700M3/H (22-inch)
• 10850M3/H (24-inch)

Total Pressure:

• 90Pa (8-inch)
• 100Pa (10-inch)
• 130Pa (12-inch)
• 145Pa (14-inch)
• 160Pa (16-inch)
• 185Pa (18-inch)
• 200Pa (20-inch)
• 240Pa (22-inch)
• 300Pa (24-inch)

Noise:

• 50db (A) (8-inch)
• 56db (A) (10-inch)
• 60db (A) (12-inch)
• 62db (A) (14-inch)
• 65db (A) (16-inch)
• 68db (A) (18-inch)
• 72db (A) (20-inch)
• 75db (A) (22-inch)
• 78db (A) (24-inch)

Material: Iron

Colour: Black

Package Content:

1 x Exhaust Fan

Notice

1. Clean the exhaust fan and its components regularly to prevent dust and debris buildup, which can reduce its efficiency and pose a fire hazard. Turn off the power and remove the cover to clean the blades and housing.
2. Ensure that the exhaust fan is vented outside your home and not just into the attic or a crawlspace. Ventilation should not introduce moist air into areas where it can cause damage.
3. Please allow a slight 1-3cm difference due to manual measurement.
